Saldatrice di testa per nastro sega VC4 – VC6Saldatrice di testa per nastro sega VC4 – VC6

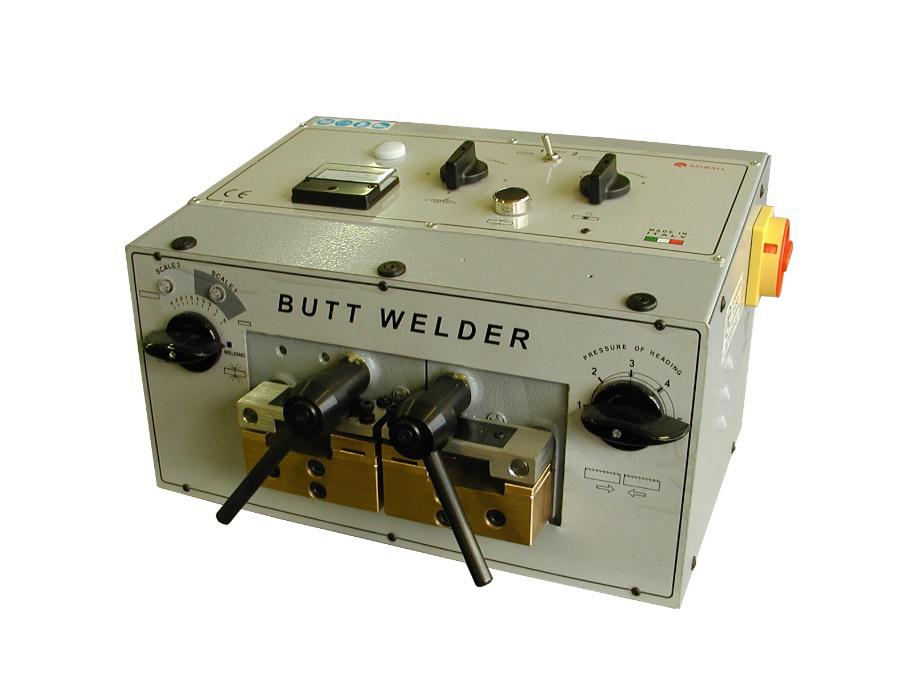

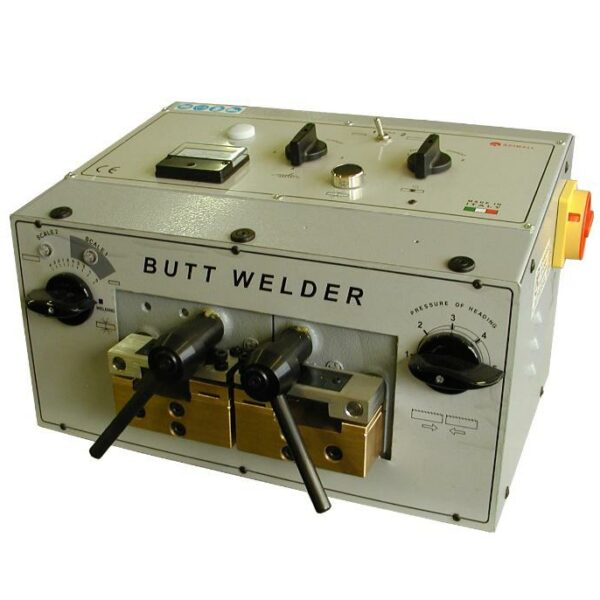

Butt welding machine for saw belt VC4 – VC6

This machine allows professional working.

TECHNICAL DATA VC4 VC6
Width of steel belts [min-max] mm 10 – 40 20 – 60
Belt thickness [min-max] mm 0,5 – 1,2 0,6 – 1,2
Max section / max cross section mm^2 32 48
Absorbed power Kw 4,5 6,5
Power supply voltage Volt 400 400
Net – Gross weight Kg 36 – 52 56 – 72
Machine dimension mm 490x520x320 490x520x320
